Yamaha Jimmy Chamberlin SD2455JC

Model: SD2455JC, production from 2004 to 2011

Size

  • diameter
  • depth

Shell

  • material
  • thickness
  • seam

Lugs

  • type

Hoops

  • type
  • holes

Strainers

  • release
  • butt

Wire

  • type

Detailed specifications

Production start 2004
end 2011
made in Japan
Size depth 5.5"
diameter 14"
Shell material steel
finish matte chrome
thickness 1.2 mm
seam seamed
Lugs type small cube
Hoops type Aluminum Die-cast
holes 10 holes
Strainers release H type
butt G type
Wire type short / 20
material hi-carbon steel snare

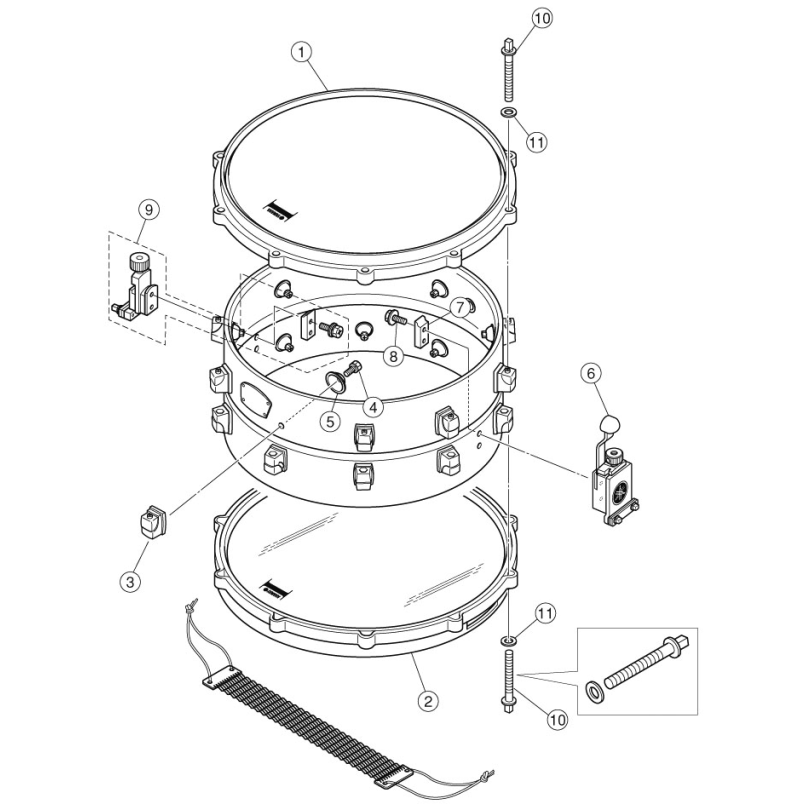

Ref No. Parts No. (ChangeNo.) English Name
1 U0062310 DC-HOOP 14x10H(2) 11xx/15xx
10 U0043052 RIM TENSION ROD L=40
11 U0045010 WASHER
2 U0062410 DC-HOOP 14x10HS R 11xx/15xx
3 U0030950 LUG ASSY FT/TT
4 U0035480 HEXAGON BOLT M5X14
5 U0033050 METAL WASHER (M5)(METAL SD)
6 U0201211 Strainer Release Side Complete(H) N ASSY
7 U0202270 SA HOLDING PLATE
8 U0035670 MOUNTING HEX BOLT WASHER M4X16 ZY
9 U0200976 STRAINER(BUTT SIDE) SD4106/4105/3106
A' U0035670 MOUNTING HEX BOLT WASHER M4X16 ZY
C' U0207460 STRAINER (G)PLATE
D' U0204210 SNARE HOLDING BASE (2) MSD-0104
E' U0603480 DRUM KEY BOLT M5X13
F' U0202270 SA HOLDING PLATE

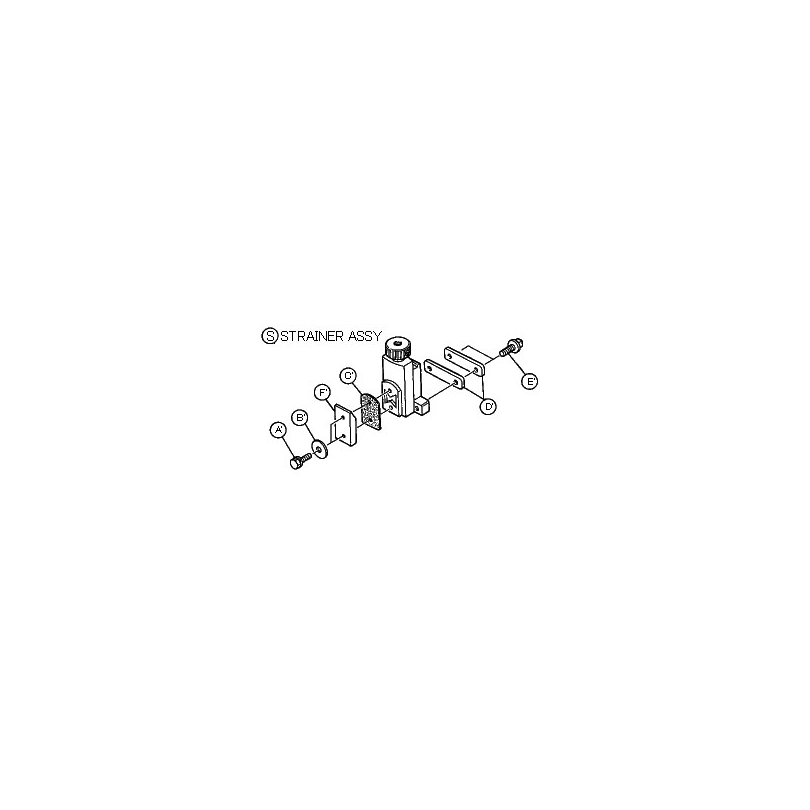

S DDDDDDDD Not Available(Discontinued)
S U0201211 Strainer Release Side Complete(H) N ASSY
S-1 U0204210 SNARE HOLDING BASE (2) MSD-0104
S-2 U0603480 DRUM KEY BOLT M5X13
S-3 U0207460 STRAINER (G)PLATE
S-4 U0035670 MOUNTING HEX BOLT WASHER M4X16 ZY
