Yamaha Mike Bordin SD6455MB

Model: SD6455MB, production from 2004

Size

  • diameter
  • depth

Shell

  • material
  • thickness

Lugs

  • type

Hoops

  • type
  • finish
  • holes

Strainers

  • release
  • butt

Wire

  • type

Detailed specifications

Production start 2004
end
made in Japan
Size depth 6.5"
diameter 14"
Shell material copper
finish black
thickness 2 mm
Lugs type small
Hoops type DynaHoop
finish black
holes 10 holes
Strainers release H type
butt DC type
Wire type short / 20
material hi-carbon steel snare

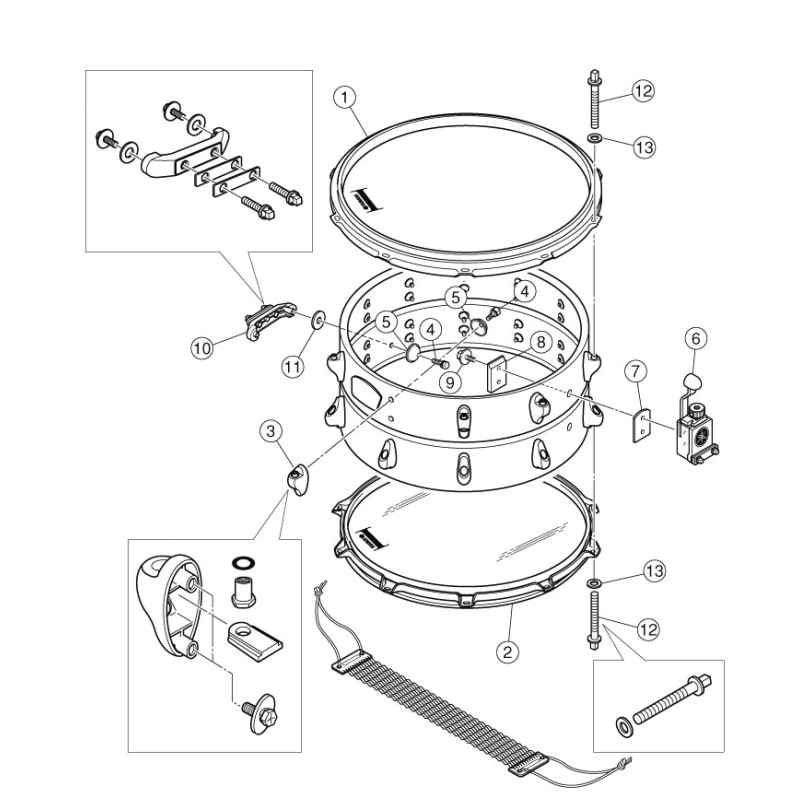

Ref No. Parts No. (ChangeNo.) English Name
1 U0963285 DYNA HOOP3 14X10H-BL SD6465MB
10 U0201350 STRAINER (B-7)R ASS'Y 11xx/15xx
11 U0207660 STRAINER PLATE 17 11xx/15xx
12 U0043052 RIM TENSION ROD L=40
13 U0045010 WASHER
2 U0963345 DYNA HOOP3 14X10HS1-BL SD6465MB
3 U0030195 HONEY LUG S-2 ASS'Y W/O SCREW
4 U0035450 HEXAGONAL BOLT/WASHER M4X12 ZY RSD-086
5 U0033010 SD CAP WASHER (M4)
6 U0201211 Strainer Release Side Complete(H) N ASSY
7 U0207460 STRAINER (G)PLATE
8 U0202270 SA HOLDING PLATE
9 U0035670 MOUNTING HEX BOLT WASHER M4X16 ZY
A U0603480 DRUM KEY BOLT M5X13
B U0204210 SNARE HOLDING BASE (2) MSD-0104

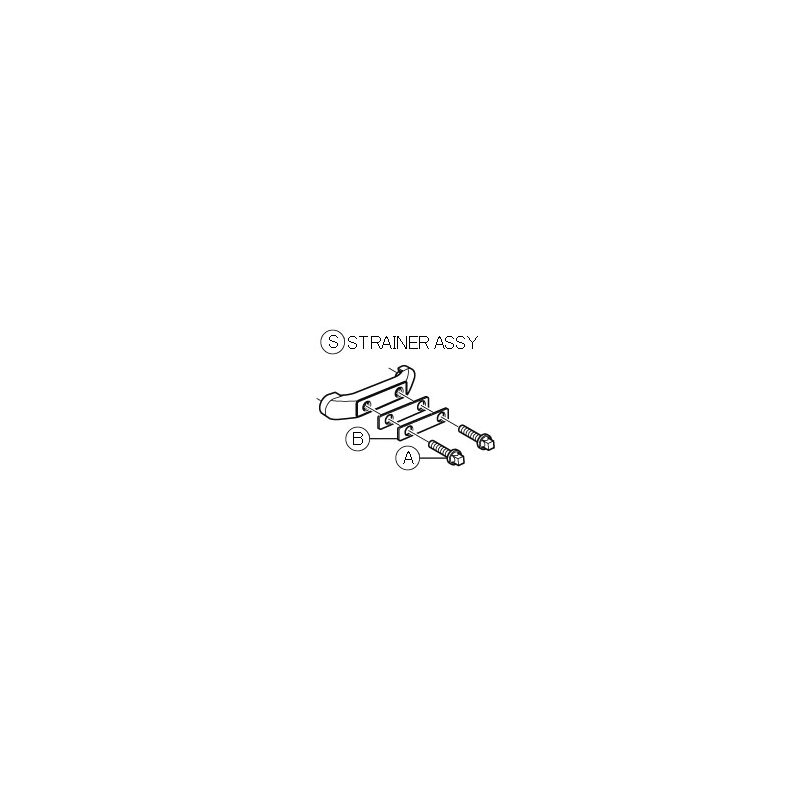

S U0201211 Strainer Release Side Complete(H) N ASSY
S U0201350 STRAINER (B-7)R ASS'Y 11xx/15xx
S-1 U0204210 SNARE HOLDING BASE (2) MSD-0104
S-2 U0603480 DRUM KEY BOLT M5X13
S-3 U0207460 STRAINER (G)PLATE
S-4 U0035670 MOUNTING HEX BOLT WASHER M4X16 ZY
