Yamaha Roy Haynes SD655RH

Model: SD655RH, production from 1999 to 2005

Size

  • diameter
  • depth

Shell

  • material
  • thickness
  • seam
  • beds

Lugs

  • type

Hoops

  • type
  • holes

Strainers

  • release
  • butt

Wire

  • type

Detailed specifications

Production start 1999
end 2005
made in Japan
Size depth 5.5"
diameter 14"
Shell material copper
finish hand hammered
thickness 1.2 mm
seam seamless
beds 1.8 mm
Lugs type small cube
Hoops type DynaHoop
holes 10 holes
Strainers release H type
butt B type
Wire type short / 25
material hi-carbon steel snare

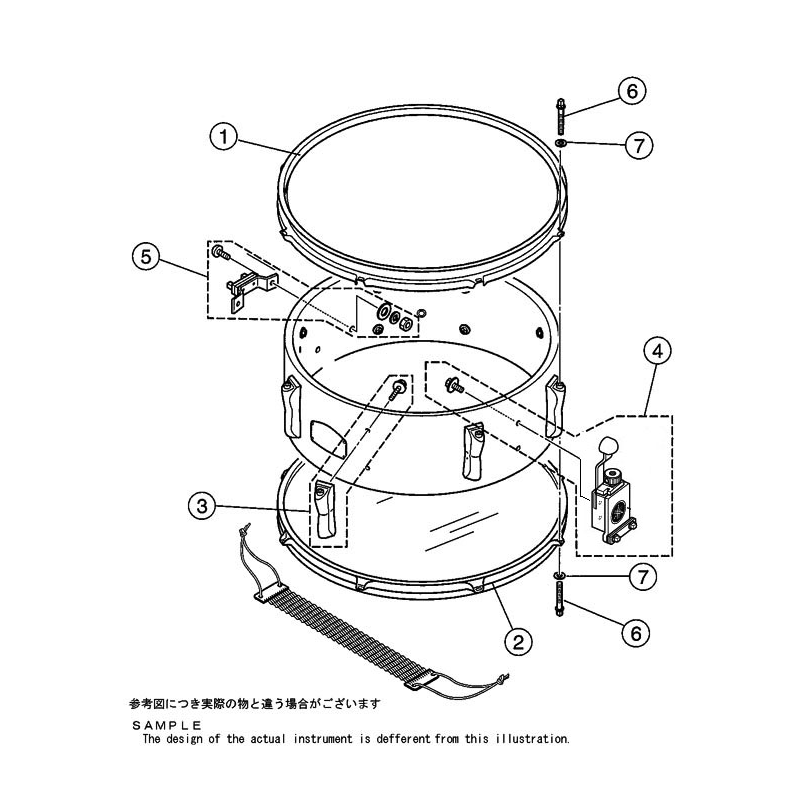

Ref No. Parts No. (ChangeNo.) English Name
1 U0963280 DYNA HOOP 14X10H CUSTOM DRUM
2 U0963340 DYNA HOOP 14X10HS1 CUSTOM DRUM
3 U0030950 LUG ASSY FT/TT
4 DDDDDDDD Not Available(Discontinued)
5 U0200081 STRAINER BUTT SIDE(B-3N)R ASSY
6 U0043052 RIM TENSION ROD L=40
7 U0045010 WASHER
A U0204210 SNARE HOLDING BASE (2) MSD-0104
B U0603480 DRUM KEY BOLT M5X13
C U0125070 PAN HEAD SCREW M4X18
D U0123290 WASHER 4
E EV300046 SPRING WASHER 4.0MM (6)
F U1555046 HEXAGONAL NUT M4 ZY 6PC/PACK
S DDDDDDDD Not Available(Discontinued)
S-1 U0204210 SNARE HOLDING BASE (2) MSD-0104
S-2 U0603480 DRUM KEY BOLT M5X13
S-3 U0207460 STRAINER (G)PLATE
S-4 U0035670 MOUNTING HEX BOLT WASHER M4X16 ZY
T U0200081 STRAINER BUTT SIDE(B-3N)R ASSY
