Yamaha Sonny Emory WSD1455SE

Model: WSD1455SE, production from 2000 to 2011

Size

  • diameter
  • depth

Shell

  • material
  • ply
  • thickness
  • beds

Lugs

  • type

Hoops

  • type
  • holes

Strainers

  • release
  • butt

Wire

  • type

Detailed specifications

Production start 2000
end 2011
made in Japan
Size depth 5.5"
diameter 14"
Shell material beech
ply 8
thickness 10 mm
beds 1.8 mm
Lugs type round
Hoops type Zinc Die-cast
holes 10 holes
Strainers release H type
butt B type
Wire type short / 25
material hi-carbon steel snare
Ref No. Parts No. (ChangeNo.) English Name

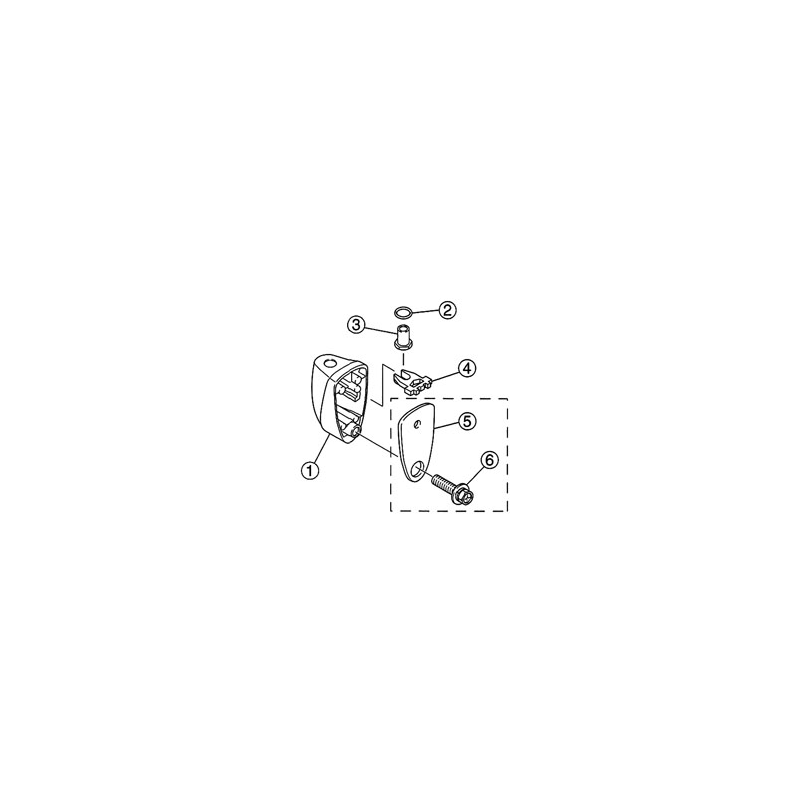

1 U0032850 FT,TT SMALL LUG(N)2 AFT10-18/ATT1016
1 U0062150 ZN DIE-CAST HOOP 14X10H SD435DG
2 U0038050 RUBBER O RING
2 U0062160 ZN DIE-CAST HOOP 14X10HS SD435DG
3 U0031050 LUG ASSY AFT1018/ATT1016/ASD0106
3 U0033250 LUG NUT (5)
4 U0037071 SD-HT LUG NUT HOLD PLATE
4 U0201211 Strainer Release Side Complete(H) N ASSY
5 U0147860 LUG PLATE AFT/ATT/ASD
5 U0200081 STRAINER BUTT SIDE(B-3N)R ASSY
6 U0035650 EXAGONAL BOLT M5X16/SPRING WASHER/SPRIN
6 U0043052 RIM TENSION ROD L=40
7 U0045010 WASHER
A U0204210 SNARE HOLDING BASE (2) MSD-0104
B U0603480 DRUM KEY BOLT M5X13
C U0125070 PAN HEAD SCREW M4X18
D U0123290 WASHER 4
E EV300046 SPRING WASHER 4.0MM (6)
F U1555046 HEXAGONAL NUT M4 ZY 6PC/PACK
S U0201211 Strainer Release Side Complete(H) N ASSY
S-1 U0204210 SNARE HOLDING BASE (2) MSD-0104
S-2 U0603480 DRUM KEY BOLT M5X13
S-3 U0207460 STRAINER (G)PLATE
S-4 U0035670 MOUNTING HEX BOLT WASHER M4X16 ZY
