Yamaha Oak custom NSD085

Model: NSD085, production from 2002 to 2005

Size

  • diameter
  • depth

Shell

  • material
  • ply
  • beds

Lugs

  • type

Hoops

  • type
  • holes

Strainers

  • release
  • butt

Wire

  • type

Detailed specifications

Production start 2002
end 2005
made in Japan
Size depth 5.5"
diameter 14"
Shell material oak
ply 6
beds 1.8 mm
Lugs type round
Hoops type DynaHoop
holes 10 holes
Strainers release H type
butt B type
Wire type short / 20
material hi-carbon steel snare

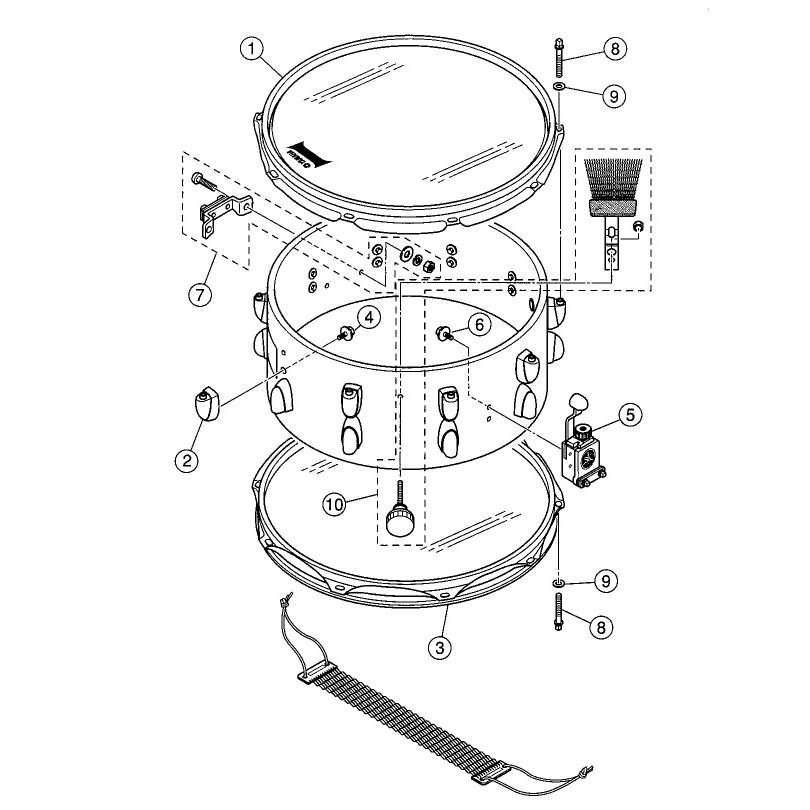

Ref No. Parts No. (ChangeNo.) English Name
1 U0963280 DYNA HOOP 14X10H CUSTOM DRUM
10 U0330071 SNARE TB ASS'Y(N)

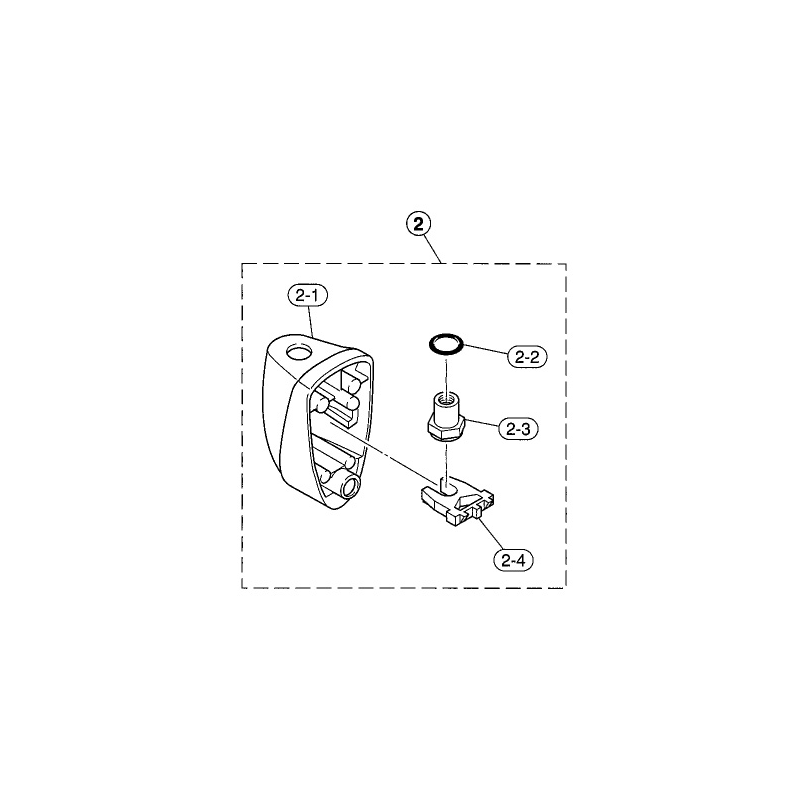

2 U0031121 FT.TT SMALL LUG (3)N ASSY TOM TOM NTT816
2-1 U0032900 FT.TT SMALL LUG TOM TOM NTT816
2-2 U0038050 RUBBER O RING
2-3 U0033250 LUG NUT (5)
2-4 U0037071 SD-HT LUG NUT HOLD PLATE
3 U0963340 DYNA HOOP 14X10HS1 CUSTOM DRUM
4 U0035660 HEXAGONAL BOLT M5X14/SPRING WASHER
5 DDDDDDDD Not Available(Discontinued)
6 U0035670 MOUNTING HEX BOLT WASHER M4X16 ZY
7 U0200081 STRAINER BUTT SIDE(B-3N)R ASSY
8 U0043052 RIM TENSION ROD L=40
9 U0045010 WASHER
A U0204210 SNARE HOLDING BASE (2) MSD-0104
B U0603480 DRUM KEY BOLT M5X13
C U0125070 PAN HEAD SCREW M4X18
D U0123290 WASHER 4
E EV300046 SPRING WASHER 4.0MM (6)
F U1555046 HEXAGONAL NUT M4 ZY 6PC/PACK
S DDDDDDDD Not Available(Discontinued)
S-1 U0204210 SNARE HOLDING BASE (2) MSD-0104
S-2 U0603480 DRUM KEY BOLT M5X13
S-3 U0207460 STRAINER (G)PLATE
S-4 U0035670 MOUNTING HEX BOLT WASHER M4X16 ZY
